Turenwerke SL75 Design 20 Aluminium Door - Winchester - Blackline
- Stainless rosette with burglary protection
- Aluminium Threshold with thermal break
- 3-Point hook lock from Winkhaus
- 3x 3D adjustable hinges (Painted in door colour)
- Anti-lift out frame pins
- XPS foam insulation
- Aluminium frame 75mm with thermal insulation.
- Powder-coated aluminium cover
- 3-Pane Glazing ( Optional laminated safety glass or RC2 )
- 18.5mm x 64mm Aluminium Threshold - With thermal break and water drainage ( Click here for more details )
Colour Range with Sand-blasted glazing option:
Wood models obtained by sublimation:
- Door Leaf thickness: 75mm
- Colour: Winchester
- Comes with Winkhaus 3-Point hook locking system as standard
- IFT Rosenheim security class RC2 glazing can be chosen as an option
- Motorised lock option available. Smarthome with a fingerprint reader - you will never need your key again!
- Stainless steel handlebar: Long or short? Silver or black? Round or square? We have them all!
- 3 reinforced roller hinges - adjustable in 3 directions, round and matched to the colour of the door.

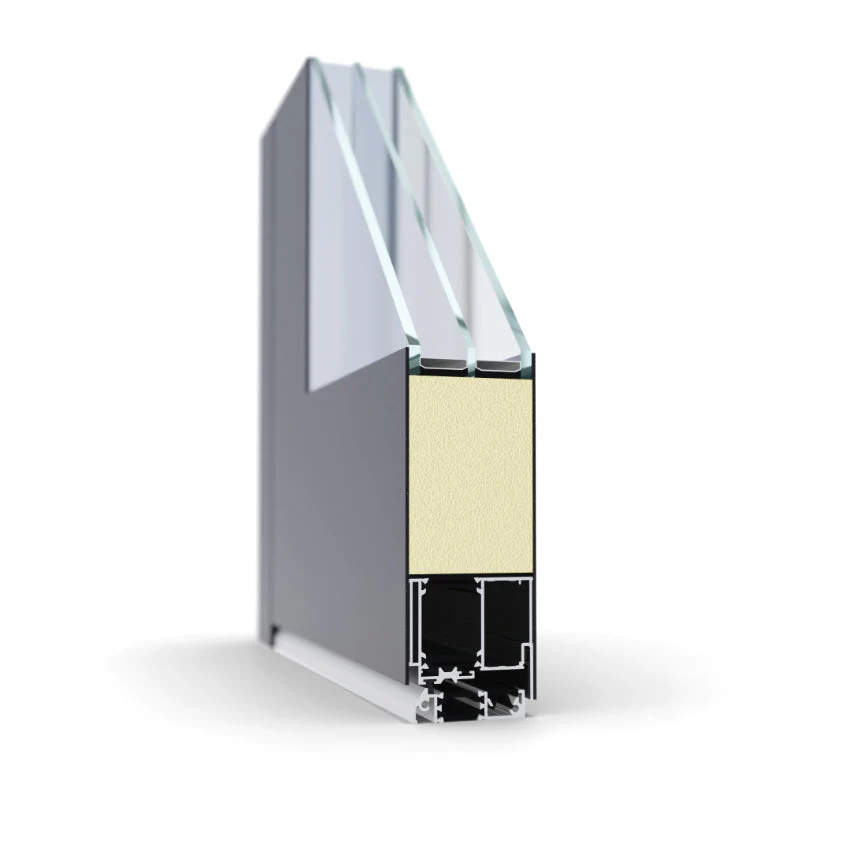

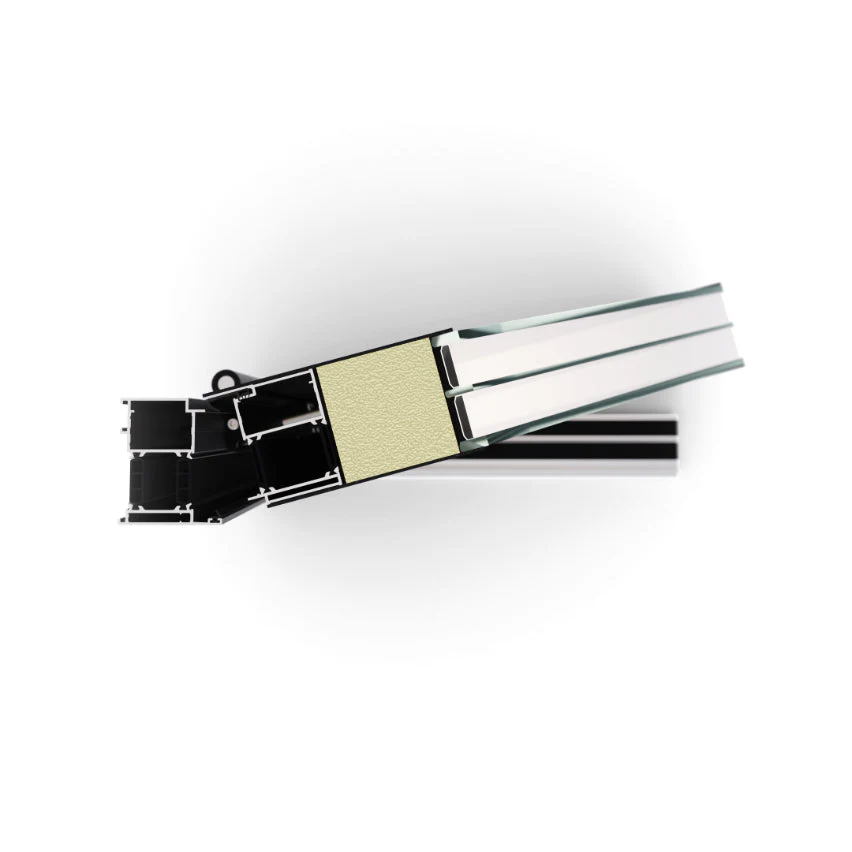

- 2-chamber aluminium profile with thermal break, stable and durable. Sidelight and top light available.
- Standard glazed door comes with triple glass and with VSG Secure option- quadruple glazed hard secured laminated glass is provided
- Leaf surface: Powder-coated aluminium sheet - each 2mm thick
Additional Options description:
- All doors are supplied with a frame

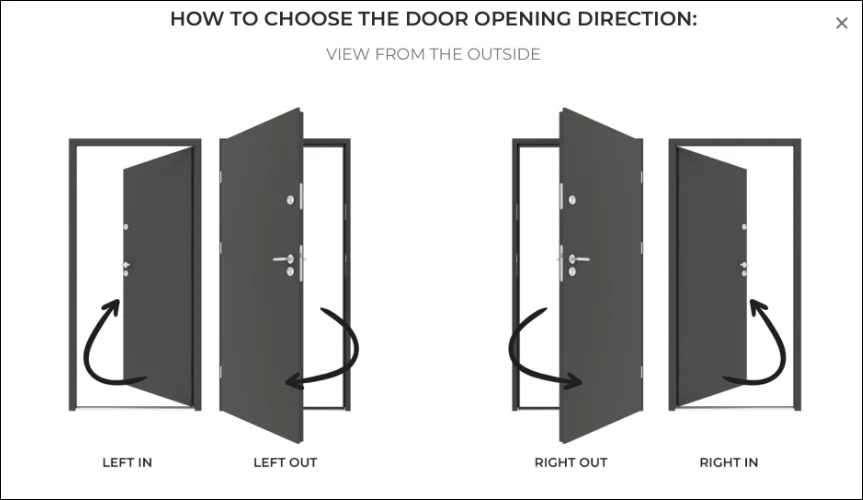

- Door Handing is possible both inwards and outwards. Please check the product image for more details
- Top frame extension can be ordered for a larger structural opening to fill out gaps
- Side frame extension can be ordered for a larger structural opening to fill out gaps
- Handles or Knobs, if ordered, will cover both sides of the doors. (Blackline door version is supplied with black handles). Bar door handles are provided with a Bar handle outside and a normal handle inside
- Standard door comes with Winkhaus 3-point hook locking system - Door can be locked and unlocked using the key.
- GU-Automatic 3-point lock version, if ordered, locks the door automatically when closed and can be opened from inside. (Keys are needed to open the door from outside)
- Additional locks: (i) Motorised lock with fingerprint reader, (ii) Motorised lock with keypad reader, (iii) Motorised lock with both fingerprint and keypad reader.
- With an additional electric strike, the door can be unlocked from the outside, when a bar handle is fixed outside ( Day function - Keeps door unlocked, Night function - Keeps the door locked )
- For black glazed doors, all glazing options are free whereas for standard glazed doors grey glass options incur an additional cost
- Standard glazed door comes with ultra-safe glass with triple glazing.
- Sidelight dimensions are calculated with the frame included. Specify your sidelight dimensions (in cm.) in the comments section.
- Letterbox options available for designs: 00/20, 01/21, 02/22, 04/24, 11/31, 14,34.
Side-light and Top-Light Options:
Door Assembly Instructions:
Contents Inside:
- Aluminium frame with thermal insulation and wooden stiffening
- 3x 3D adjustable roller hinges with door hinge bolts
- Winkhaus 3-point hook locking system
- Profile cylinder with keys
- Aluminium Threshold with thermal break
- Glass Design includes: 2 chambers, triple glazing
Note: Free shipping for all Turenwerke doors
FAQs
The Turenwerke SL75 Design 20 Aluminium Door – Winchester – Blackline is a premium external entrance door that combines a 75 mm aluminium door leaf with a thermally insulated aluminium frame for strength, weather resistance, and modern design. The Winchester wood‑effect finish gives a natural timber look, while Blackline details (black handles and hardware) add a stylish contrast and contemporary aesthetic.
This model features the Winchester wood‑effect finish obtained via sublimation technology to mimic real wood grain on aluminium. The Blackline version includes black handles and fittings for a sleek look, ideal for modern residential façades.
The door includes a Winkhaus 3‑point hook locking system as standard, adjustable 3D hinges, anti‑lift frame pins, and the option for RC2 security glazing. These features help enhance protection against forced entry while maintaining smooth operation.
Yes. The SL75 Design 20 is engineered for high thermal performance with XPS foam insulation and a thermally broken aluminium frame. Typical thermal insulation values are around Ud 0.95 W/m²K without glazing and approximately 1.15 W/m²K with glazing, helping improve energy efficiency.
In addition to colour and finish, this door can be customised with optional features such as RC2 security glazing, motorised locks (including fingerprint or keypad options), sidelights or top lights, and different handle styles. The aluminium threshold comes with a thermal break and water drainage for enhanced performance.
